KTM/Husqvarna/Beta/Sherco Pass-Through Speedometer to Tripmeter Adapter

Want to run your ICO or RNS Tripmeter from your stock Euro Speedometer sender, but keep your stock odometer?

We've got you covered!

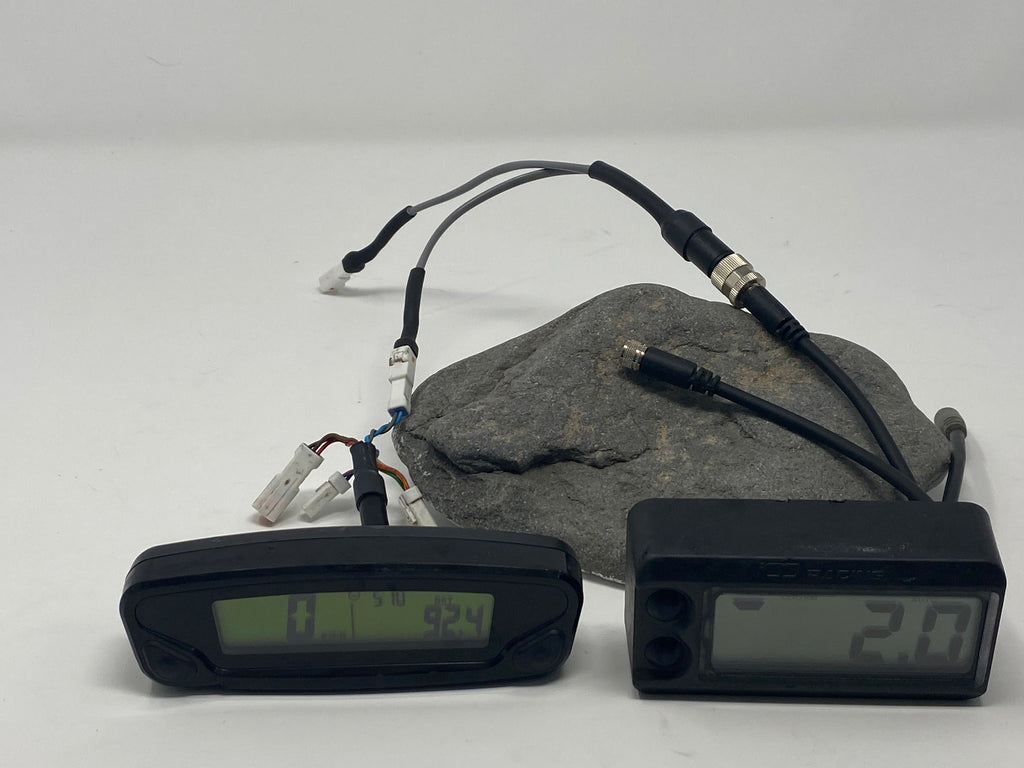

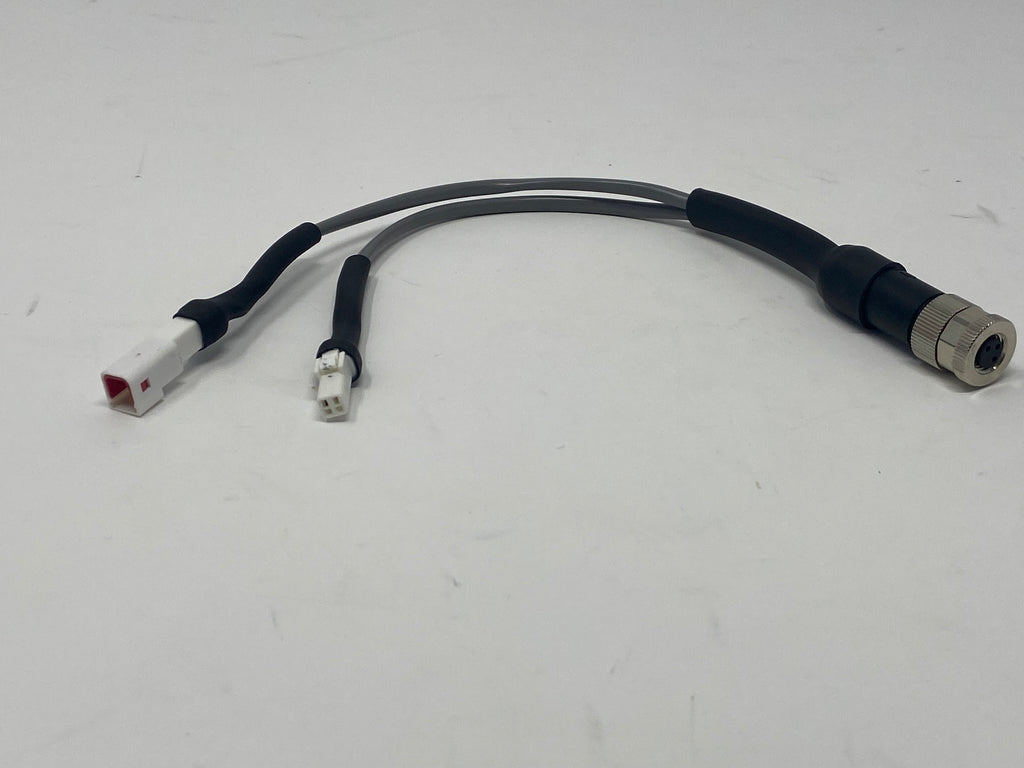

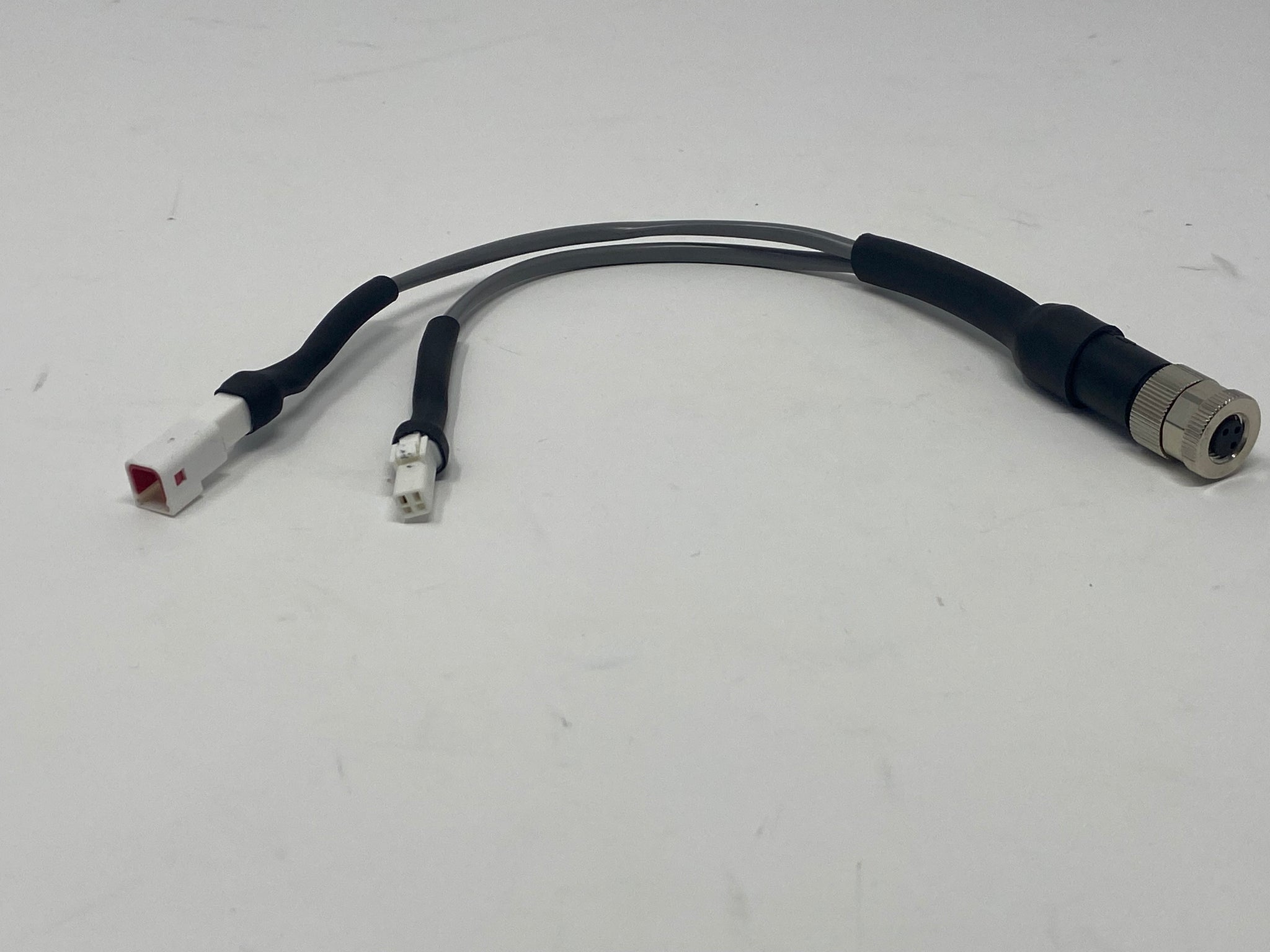

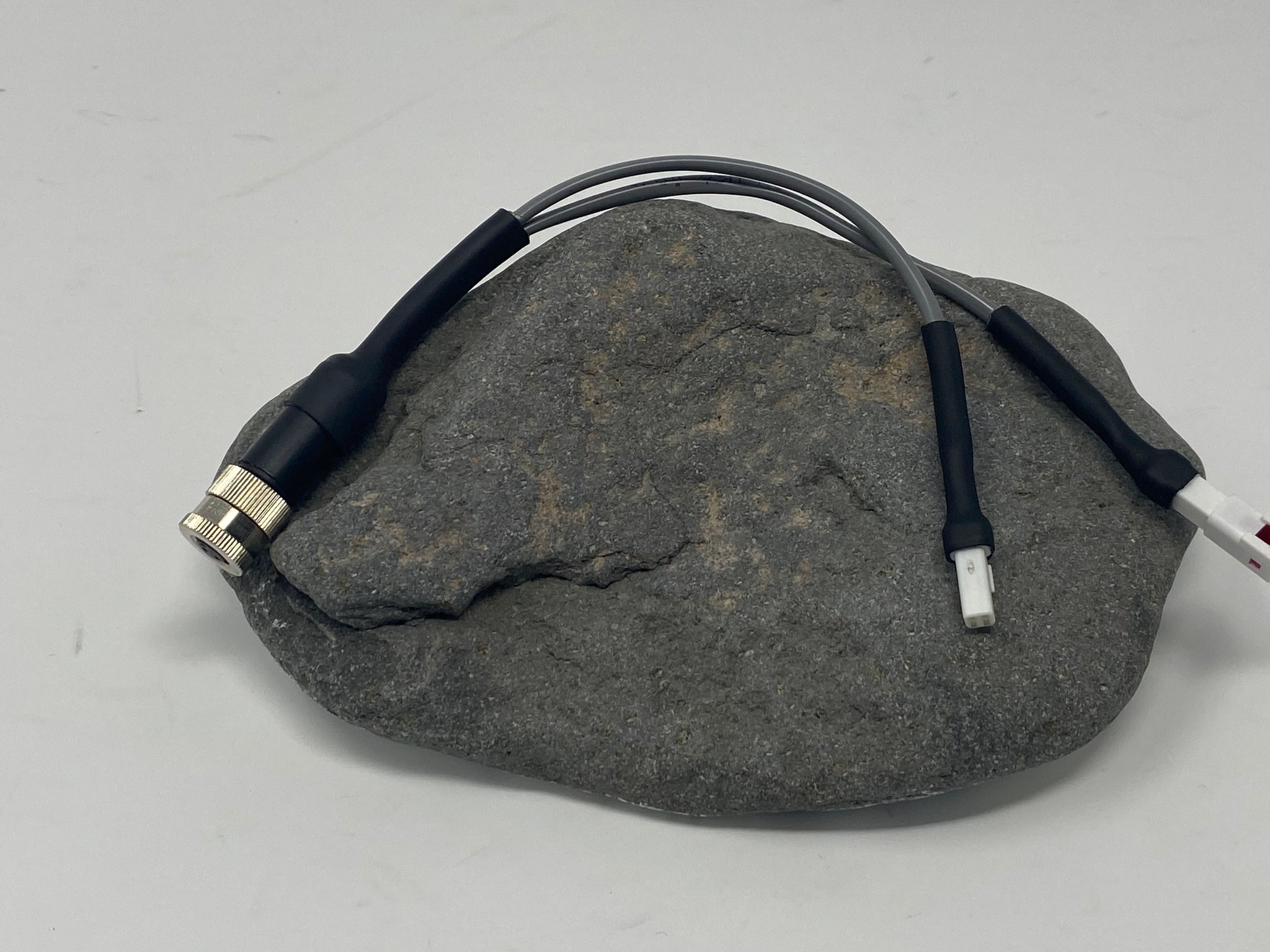

No-cut, plug-and-play 8" adapter cable to join a KTM speedo cable to both a standard tripmeter and your stock odometer.

Note that because of the way ICOs are manufactured, the polarity of the wheel sensor is not the consistent between different units. For this reason,  the ICO version ships with the final heatshink not sealed. Finishing it is very simple, and you cannot hurt anything by reversing the polarity - the odos will simply not advance if it is wired backwards.

  1. Test the cable - If both tripmeter and stock odo function then you are good to seal the heatshink with a heat gun or lighter.

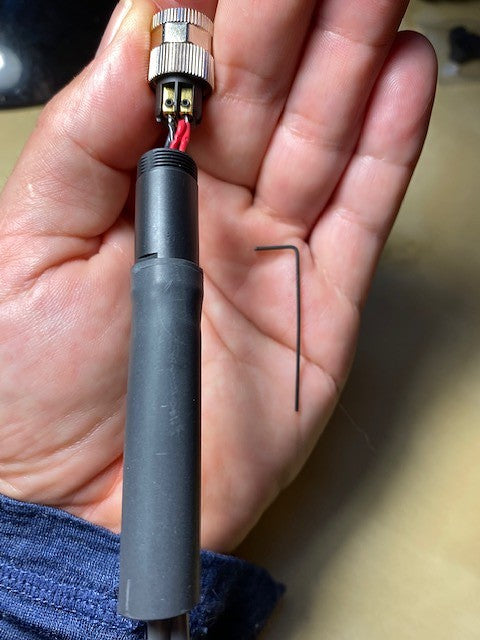

  2. If they don't work, loosen the set screws with the included hex key, reverse the red and black wires in the plug, and re-tighten.
  3. Test the cable - If both tripmeter and stock odo function then you are good to seal the heatshink with a heat gun or lighter.
  4. Go racing!

    $70.00 USD
